Hinowa 20.10 Tracked Spider Boom

Max. Working Height

20.10 m

Max. Platform Height

18.00 m

Tracked Wheels

Hinowa Lightlift 20.10 Performance IIIs

20m working height, 9.7m outreach and 230kg load capacity throughout the working range.

The Lightlift 20.10 features Hinowa’s Performance IIIS system, which reduces travel and set-up time, for increased productivity. One touch of a button takes care of outrigger deployment and levelling, as well as retraction once the job is done. Other efficiency-boosting features include auto-speed control which factors in ground conditions; and wireless remote control. With a minimum travel width of less than 0.8m and stowed height of less than 2m, this compact lift can pass through narrow door and gateways. The Lightlift 20.10 provides a working height of up to 20.1m and a maximum horizontal outreach of 9.7m, with a safe working load of 230kg.The Hinowa LL 20.10 is available with a diesel engine combined with a mains electric power of 110 or 220V

Hinowa 20.10 Tracked Spider Boom
Hinowa 20.10 Tracked Spider Boom
Hinowa 20.10 Tracked Spider Boom
Hinowa 20.10 Tracked Spider Boom
Hinowa 20.10 Tracked Spider Boom
Hinowa 20.10 Tracked Spider Boom

Max. Working Height

20.10 m

Max. Platform Height

18.00 m

Tracked Wheels

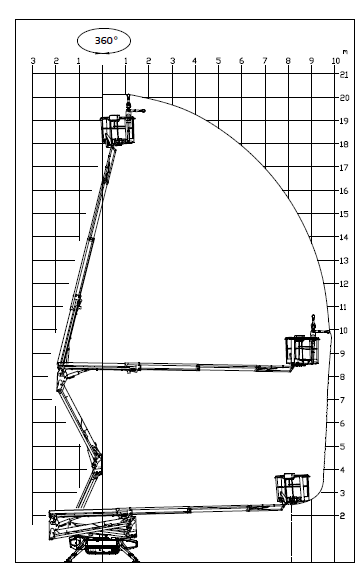

Hinowa 20.10 Tracked Spider Boom Working Envelope

Download Product Specifications below
