Dingli AMWP11.5-8100AC

Max. Working Height

11.20 m

Max. Platform Height

9.20 m

Safe Working Load

200 kg

● Equipped with fully sealed AC system, which is maintenance-free, more waterproof, more efficient and safer, combined with maintenance-free batteries.

● Electrical driven, with light structure and flexible operation. Making it suitable for indoor use, and some outdoor use on flat surfaces.

● Can be driveable at full height, and specifically useful for narrow spaces.

● Has a large range of horizontal outreach.

● Equipped with the unique pothole protection system to increase it's safety features.

● Equipped with special fork loading holes for convenient transportation around sites if required.

● Wider platform basket width in comparison to its competitors.

Dingli AMWP11.5-8100AC
Dingli AMWP11.5-8100AC
Dingli AMWP11.5-8100AC
Dingli AMWP11.5-8100AC

Max. Working Height

11.20 m

Max. Platform Height

9.20 m

Safe Working Load

200 kg

Platform Size(Length×Width)

0.69×0.93 m

Gradeability

25 %

Max. Occupants(Inside/Outside)

2/1

Overall Weight

2970 kg

Battery

24 v

Overall Length x Overall Width x Overall Height

2.62 x 1.00 x 1.99 m

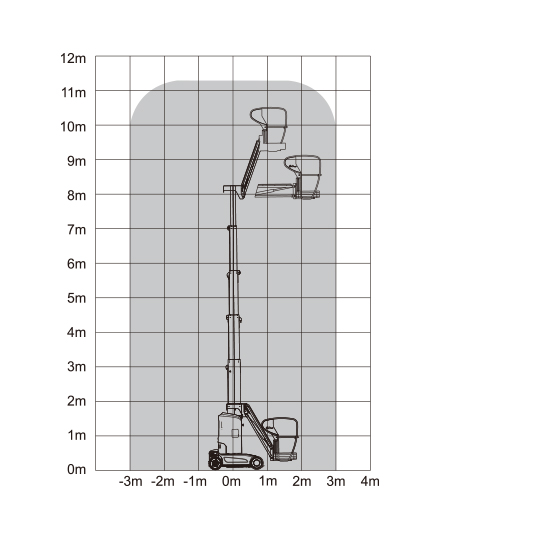

Dingli AMWP11.5-8100AC Working Envelope
