Diesel Dumper HTD-5
Max. Carrying Capacity | 500 kg |
Max. Tip Height | 2.72 m |
Width | 0.69 m |
The HTD-5 is a compact, ride-on, high-tip, diesel-powered dumpster engineered for efficient material handling. The optional SmartStep feature enhances operator safety and comfort, making the HTD-5 one of the safest machines in its class.

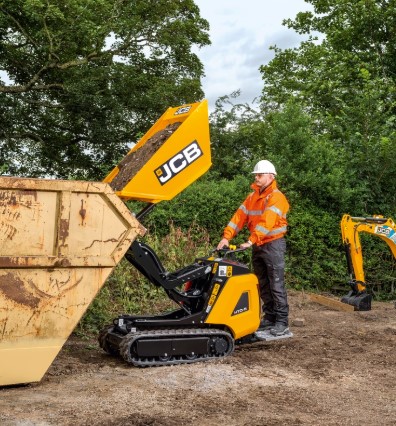

When it comes to unloading, the skip is operated hydraulically from below and is able to discharge from an exceptional tip height of 1450mm directly into skip or high sided vehicle. Although this is a small/compact machine, it has a large load capacity of 500kg.
Max. Carrying Capacity |
500 kg |
Max. Tip Height |
2.72 m |
Width |
0.69 m |
Max. Tracking Speed |
4 kph |
Operating Weight |
975 kg |

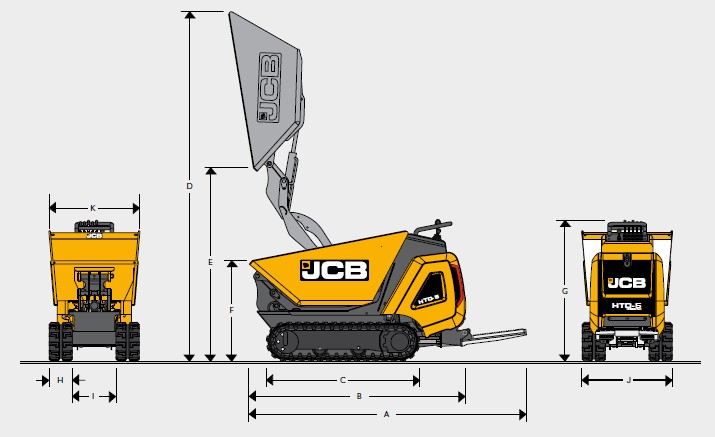

Maximum height (tipping position) |
2720 mm |
